MagStand Leg Base Connector systemUpdated 4 days ago
The MagStand Leg Base Connector system is designed to make working with, transporting, and storing multiple light stands easier, faster, and far more organized. Each connector system consists of four (4) interlocking components that magnetize and mechanically lock together to make a solid, confidence-inspiring connection. These four (4) male-female components include (2) receivers, and (2) connectors installed as counterparts across two different MagStands.

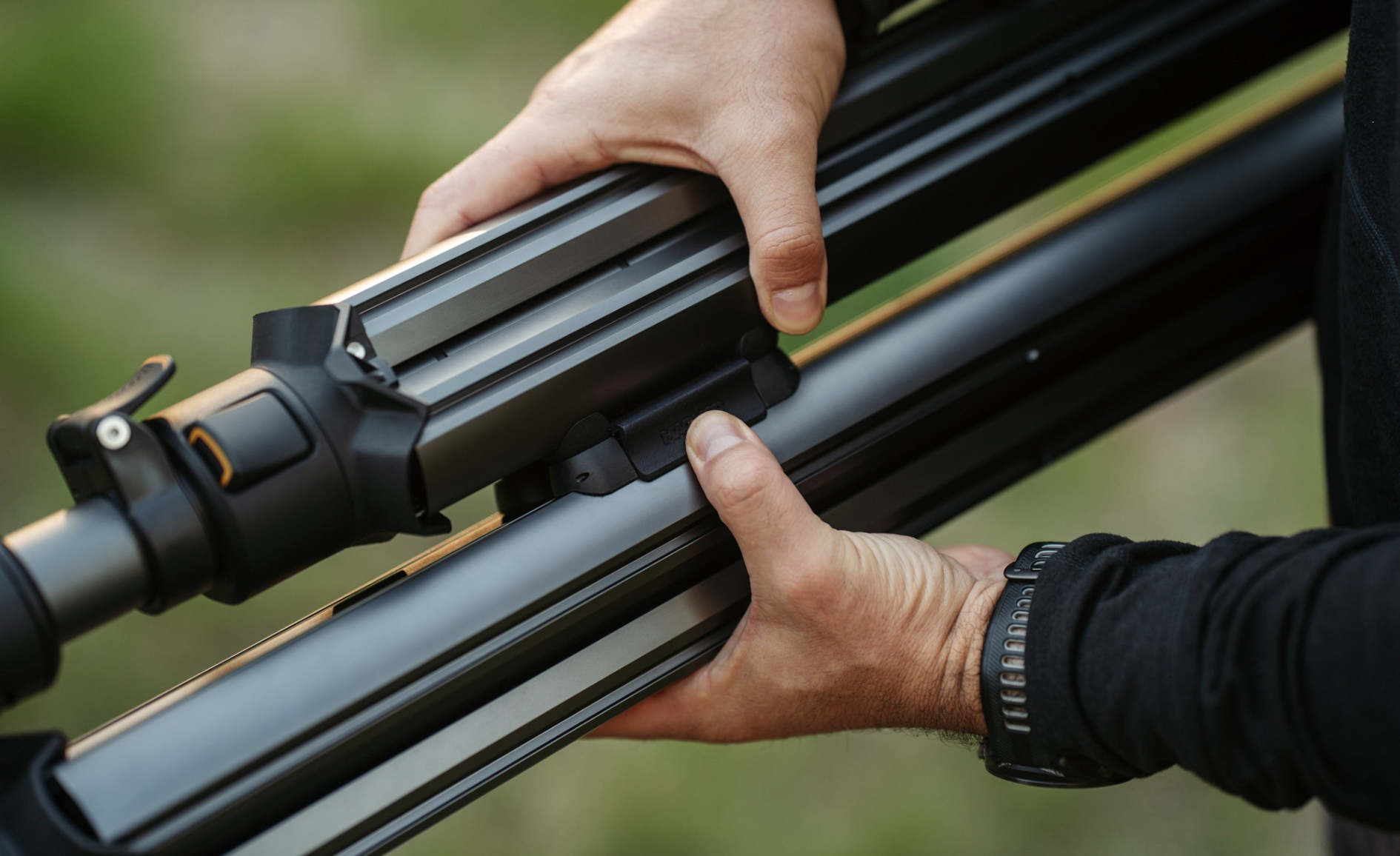

Installation is simple, and once installed, they do not need any tinkering, and you kind of forget they are even there. Each of the four (4) components fastens to the different leg channels along the MagStand legs using the included screws and custom T-nuts, and an allen-head wrench is included for easy installation. These fasteners keep the Leg Base Connector parts firmly seated and aligned to the legs. After installation, the magnetic plates allow two MagStands (or more with additional Leg Base Connector components) to snap together with a confident hold, creating a clean, bundled setup that’s easy to carry, load, or store without stands shifting or tangling.
These 4 connector parts can be configured anywhere along the MagStand leg channels to optimize the weight distribution of (2) connected MagStands to your own preferences. The MagStand Leg Base Connector system is the only light stand connecting system that allows users to customize the positioning of the connectors themselves, and the only system that allows connecting different-sized light stands together.

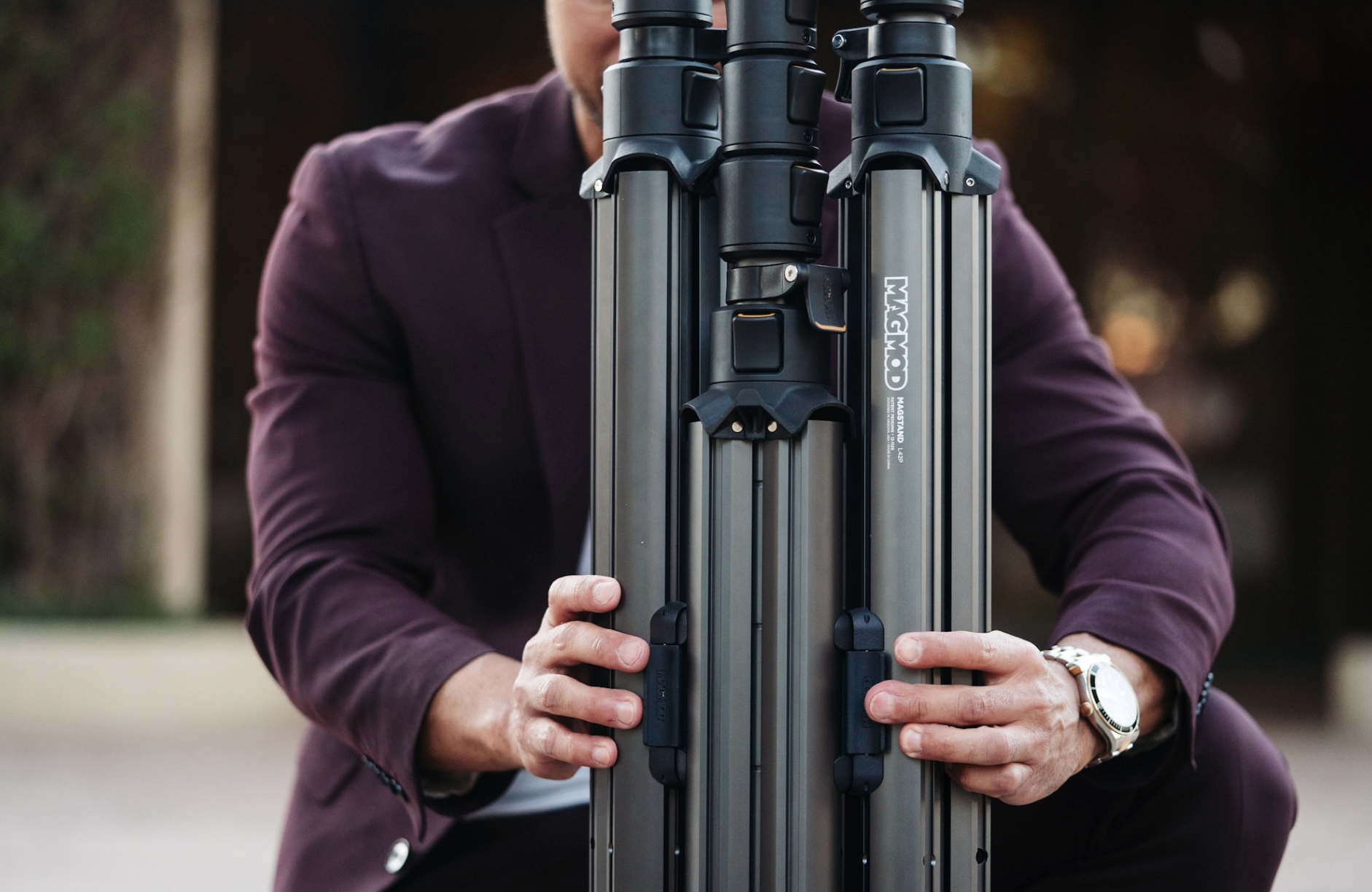

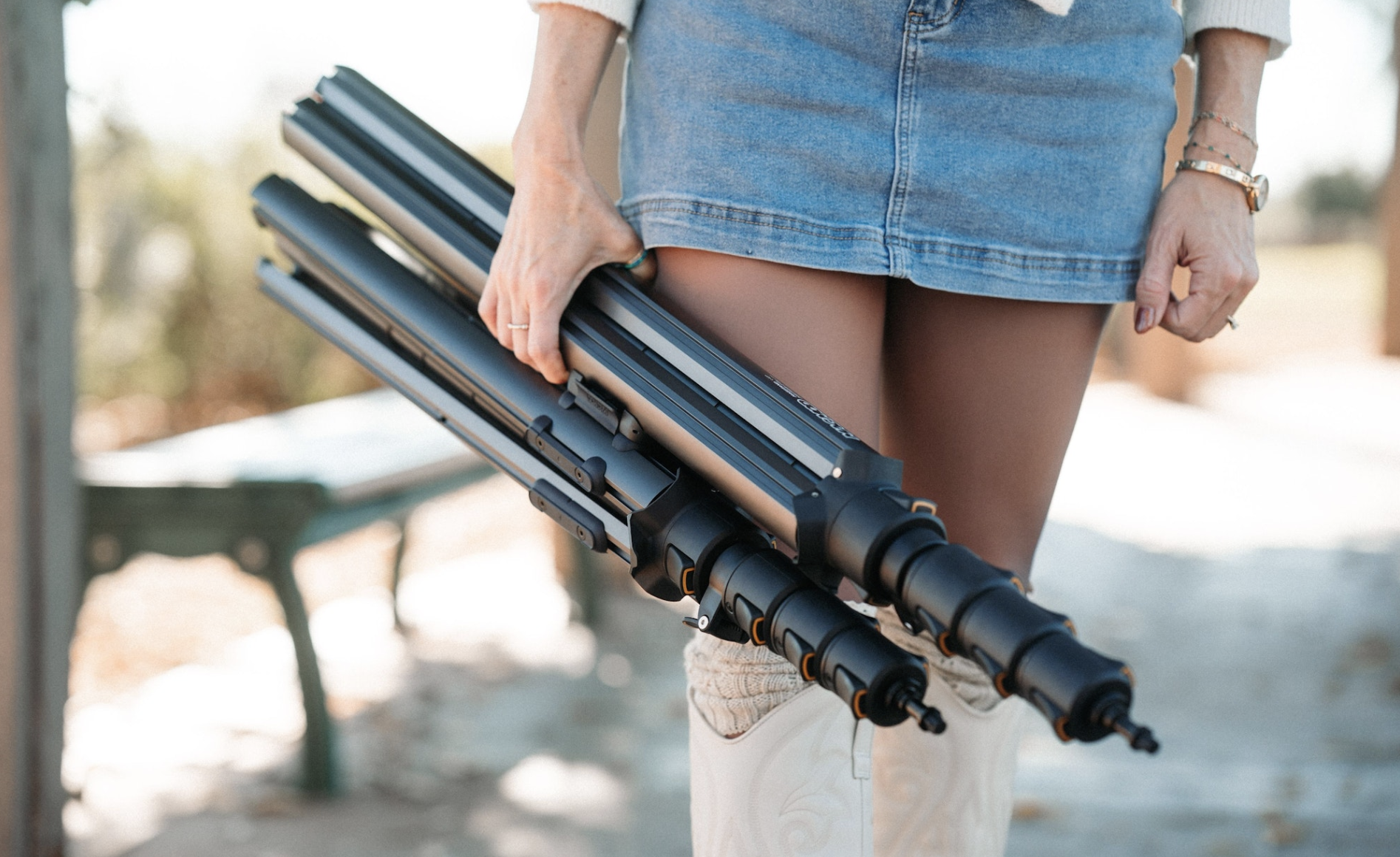

This system is invaluable when moving between locations, packing stands into cases, or staging gear on set. Instead of loose stands clanking together, the MagStand Leg Base Connector system keeps everything neatly connected while still allowing each stand to be separated instantly when it’s time to set up.

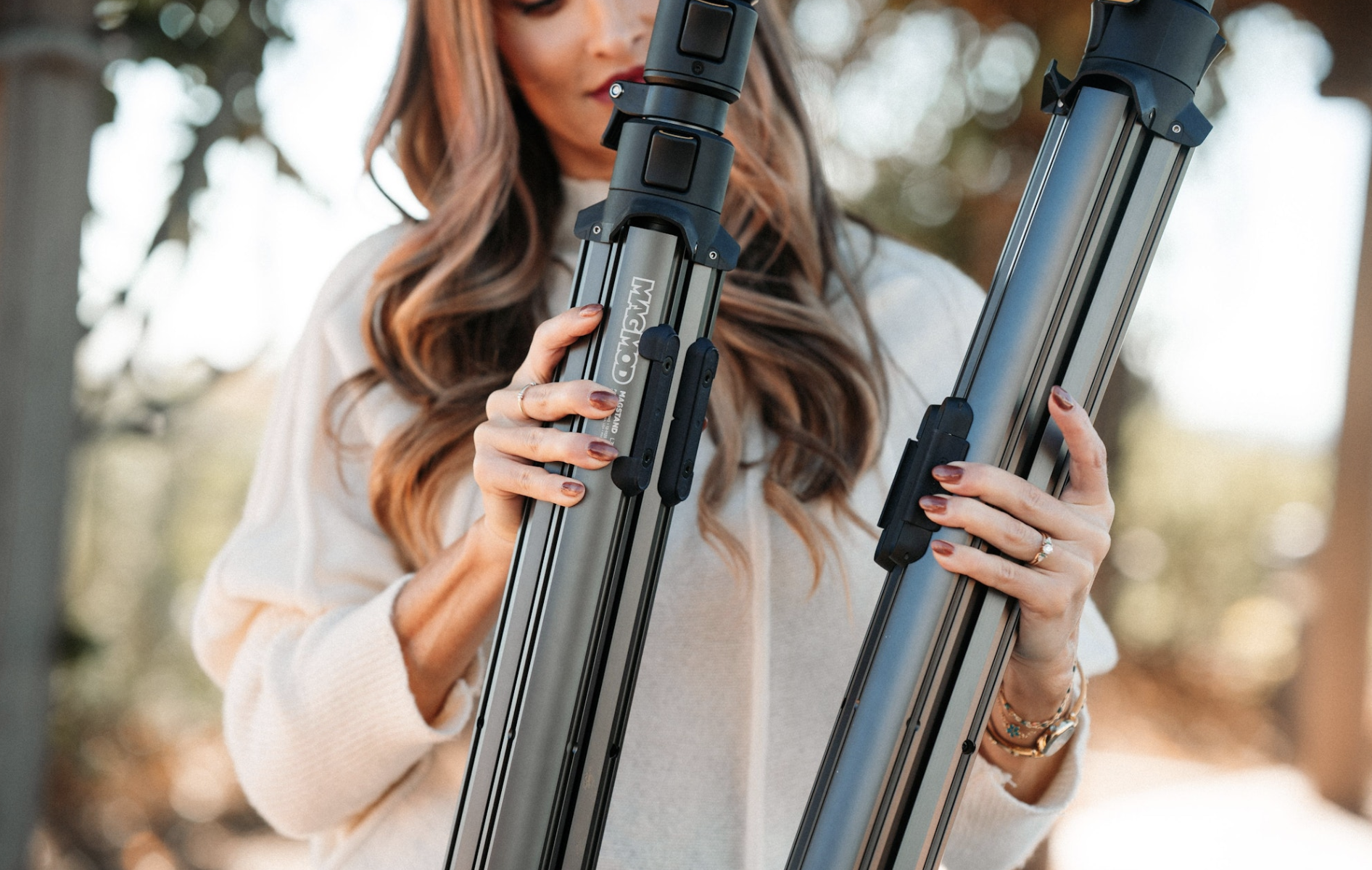

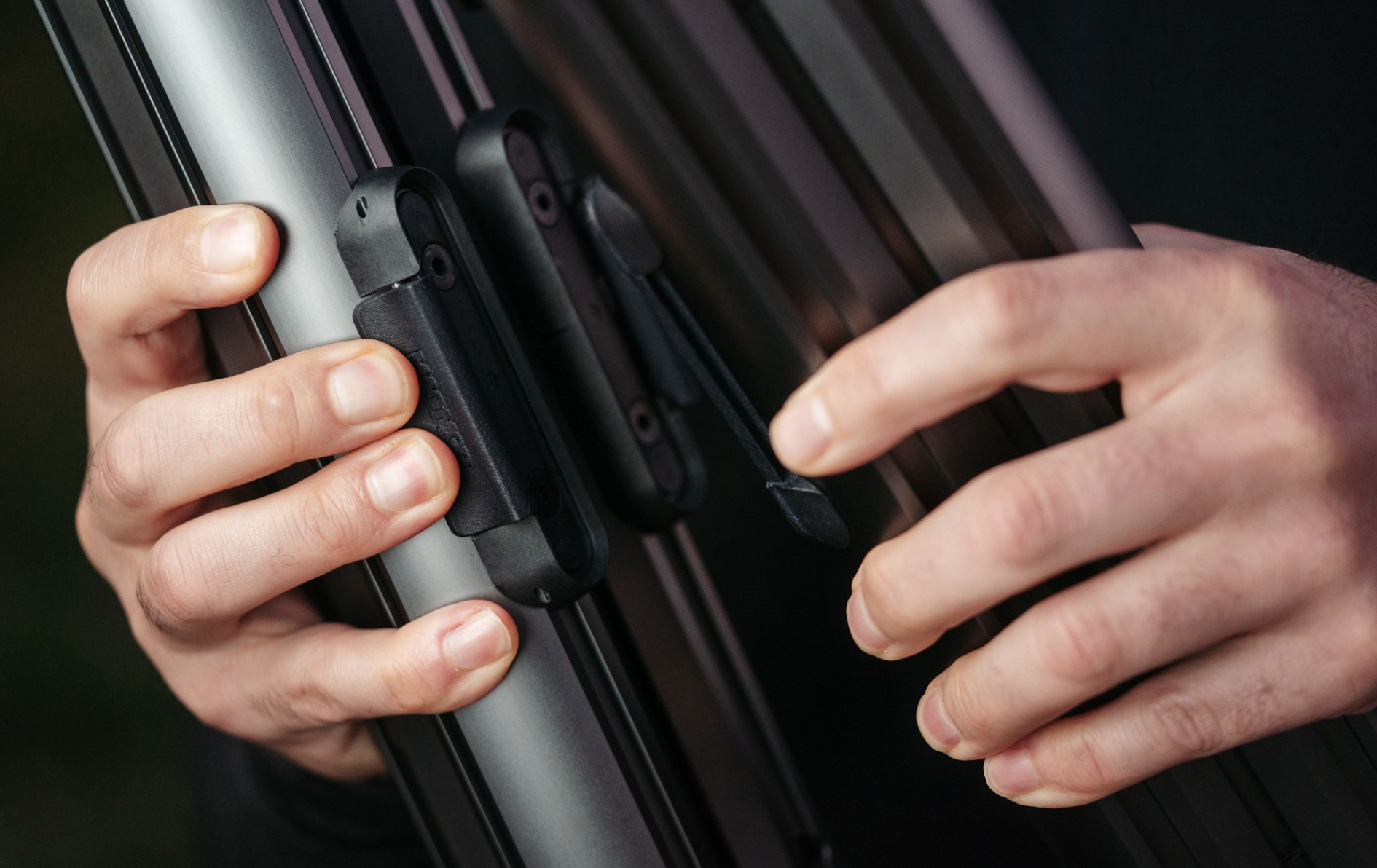

To separate two connected MagStands, press down on one of the “receivers” paddles to disengage the lock mechanism and twist the MagStands apart. They should disconnect effortlessly for a fast, easy setup.
The Leg Base Connector system is part of the MagStand’s modular design philosophy—giving you practical tools that streamline your workflow without adding bulk or complexity.
